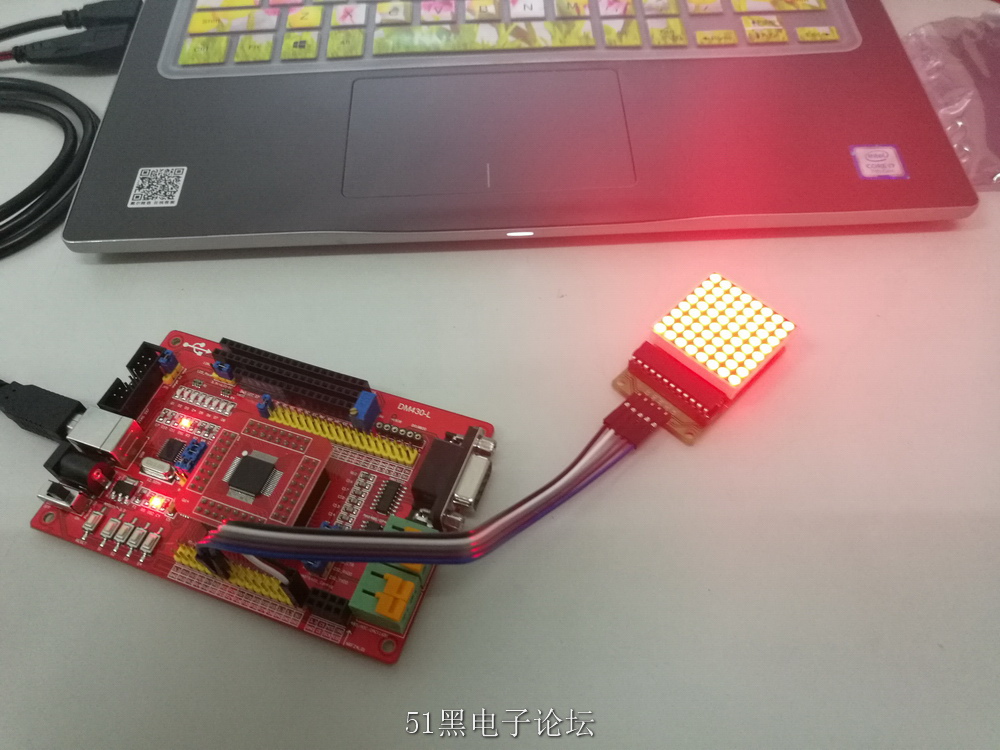

//功能：向MAX7219(U3)寫入字節
//入口參數：DATA
//出口參數：無
//說明：
void Write_Max7219_byte(uchar DATA)
{
            uchar i,temp;
            for(i=8;i>=1;i--)
          {
            temp=DATA&0x80;
            DATA=DATA<<1;
            if(temp)
              DIN_1;
            if(!temp)
              DIN_0;
            CLK_0;
            delay_ms(500);
            CLK_1;
           }
}
//-------------------------------------------
//功能：向MAX7219寫入數據
//入口參數：address、dat
//出口參數：無
//說明：
void Write_Max7219(uchar address,uchar dat)
{
     CS_0;
     delay_ms(500);
     Write_Max7219_byte(address);           //寫入地址，即數碼管編號
     delay_ms(500);
     Write_Max7219_byte(dat);               //寫入數據，即數碼管顯示數字
     delay_ms(500);
     CS_1;
}

void Init_MAX7219(void)
{
Write_Max7219(0x09, 0x00);       //譯碼方式：BCD碼
Write_Max7219(0x0a, 0x03);       //亮度
Write_Max7219(0x0b, 0x07);       //掃描界限；8個數碼管顯示
Write_Max7219(0x0c, 0x01);       //掉電模式：0，普通模式：1
Write_Max7219(0x0f, 0x00);       //顯示測試：1；測試結束，正常顯示：0
}
void main(void)
{
close_dog();
P2SEL&=~(BIT0+BIT1+BIT2);
P2DIR |=BIT0+BIT1+BIT2;
uchar i,j;
delay_ms(50);
Init_MAX7219();
while(1)
{
  for(j=0;j<38;j++)
  {
   for(i=1;i<9;i++)
    Write_Max7219(i,disp1[j][i-1]);
   delay_ms(1000);
  }
}
}

#include "io430.h"
//定義Max7219端口
#define CLK_0 P2OUT |= BIT0;
#define CLK_1 P2OUT &= ~BIT0;
#define CS_0 P2OUT |= BIT1;
#define CS_1 P2OUT &= ~BIT1;
#define DIN_0 P2OUT |= BIT2;
#define DIN_1 P2OUT &= ~BIT2;

#define CPU_F ((double)8000000)   //外部高頻晶振8MHZ
#define delay_us(x) __delay_cycles((long)(CPU_F*(double)x/1000000.0))
#define delay_ms(x) __delay_cycles((long)(CPU_F*(double)x/1000.0))

//自定義數據結構，方便使用
#define uchar unsigned char
#define uint  unsigned int
#define ulong unsigned long

void close_dog()
{
   WDTCTL = WDTPW + WDTHOLD;       //關閉看門狗
}

uchar const disp1[38][8]={
{0x3C,0x42,0x42,0x42,0x42,0x42,0x42,0x3C},//0
{0x10,0x18,0x14,0x10,0x10,0x10,0x10,0x10},//1
{0x7E,0x2,0x2,0x7E,0x40,0x40,0x40,0x7E},//2
{0x3E,0x2,0x2,0x3E,0x2,0x2,0x3E,0x0},//3
{0x8,0x18,0x28,0x48,0xFE,0x8,0x8,0x8},//4
{0x3C,0x20,0x20,0x3C,0x4,0x4,0x3C,0x0},//5
{0x3C,0x20,0x20,0x3C,0x24,0x24,0x3C,0x0},//6
{0x3E,0x22,0x4,0x8,0x8,0x8,0x8,0x8},//7
{0x0,0x3E,0x22,0x22,0x3E,0x22,0x22,0x3E},//8
{0x3E,0x22,0x22,0x3E,0x2,0x2,0x2,0x3E},//9
{0x8,0x14,0x22,0x3E,0x22,0x22,0x22,0x22},//A
{0x3C,0x22,0x22,0x3E,0x22,0x22,0x3C,0x0},//B
{0x3C,0x40,0x40,0x40,0x40,0x40,0x3C,0x0},//C
{0x7C,0x42,0x42,0x42,0x42,0x42,0x7C,0x0},//D
{0x7C,0x40,0x40,0x7C,0x40,0x40,0x40,0x7C},//E
{0x7C,0x40,0x40,0x7C,0x40,0x40,0x40,0x40},//F
{0x3C,0x40,0x40,0x40,0x40,0x44,0x44,0x3C},//G
{0x44,0x44,0x44,0x7C,0x44,0x44,0x44,0x44},//H
{0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x7C},//I
{0x3C,0x8,0x8,0x8,0x8,0x8,0x48,0x30},//J
{0x0,0x24,0x28,0x30,0x20,0x30,0x28,0x24},//K
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x7C},//L
{0x81,0xC3,0xA5,0x99,0x81,0x81,0x81,0x81},//M
{0x0,0x42,0x62,0x52,0x4A,0x46,0x42,0x0},//N
{0x3C,0x42,0x42,0x42,0x42,0x42,0x42,0x3C},//O
{0x3C,0x22,0x22,0x22,0x3C,0x20,0x20,0x20},//P
{0x1C,0x22,0x22,0x22,0x22,0x26,0x22,0x1D},//Q
{0x3C,0x22,0x22,0x22,0x3C,0x24,0x22,0x21},//R
{0x0,0x1E,0x20,0x20,0x3E,0x2,0x2,0x3C},//S
{0x0,0x3E,0x8,0x8,0x8,0x8,0x8,0x8},//T
{0x42,0x42,0x42,0x42,0x42,0x42,0x22,0x1C},//U
{0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18},//V
{0x0,0x49,0x49,0x49,0x49,0x2A,0x1C,0x0},//W
{0x0,0x41,0x22,0x14,0x8,0x14,0x22,0x41},//X
{0x41,0x22,0x14,0x8,0x8,0x8,0x8,0x8},//Y
{0x0,0x7F,0x2,0x4,0x8,0x10,0x20,0x7F},//Z
{0x8,0x7F,0x49,0x49,0x7F,0x8,0x8,0x8},//中
{0xFE,0xBA,0x92,0xBA,0x92,0x9A,0xBA,0xFE},//國
};

//--------------------------------------------
//功能：向MAX7219(U3)寫入字節
//入口參數：DATA
//出口參數：無
//說明：
void Write_Max7219_byte(uchar DATA)
{
            uchar i,temp;
            for(i=8;i>=1;i--)
          {
            temp=DATA&0x80;
            DATA=DATA<<1;
            if(temp)
              DIN_1;
            if(!temp)
              DIN_0;
            CLK_0;
            delay_ms(500);
            CLK_1;
           }
}
//-------------------------------------------
//功能：向MAX7219寫入數據
//入口參數：address、dat
//出口參數：無
//說明：
void Write_Max7219(uchar address,uchar dat)
{
     CS_0;
     delay_ms(500);
     Write_Max7219_byte(address);           //寫入地址，即數碼管編號
     delay_ms(500);
     Write_Max7219_byte(dat);               //寫入數據，即數碼管顯示數字
     delay_ms(500);
     CS_1;
}

void Init_MAX7219(void)
{
Write_Max7219(0x09, 0x00);       //譯碼方式：BCD碼
Write_Max7219(0x0a, 0x03);       //亮度
Write_Max7219(0x0b, 0x07);       //掃描界限；8個數碼管顯示
Write_Max7219(0x0c, 0x01);       //掉電模式：0，普通模式：1
Write_Max7219(0x0f, 0x00);       //顯示測試：1；測試結束，正常顯示：0
}
void main(void)
{
close_dog();
P2SEL&=~(BIT0+BIT1+BIT2);
P2DIR |=BIT0+BIT1+BIT2;
uchar i,j;
delay_ms(50);
Init_MAX7219();
while(1)
{
  for(j=0;j<38;j++)
  {
   for(i=1;i<9;i++)
    Write_Max7219(i,disp1[j][i-1]);
   delay_ms(1000);
  }
}
}
