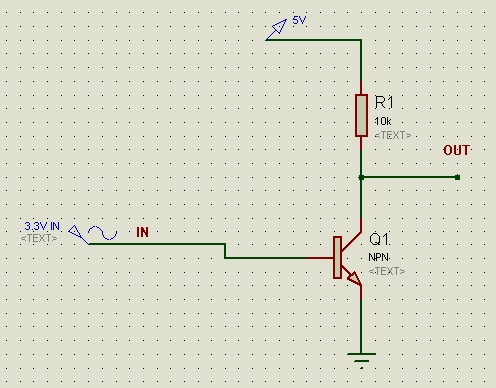

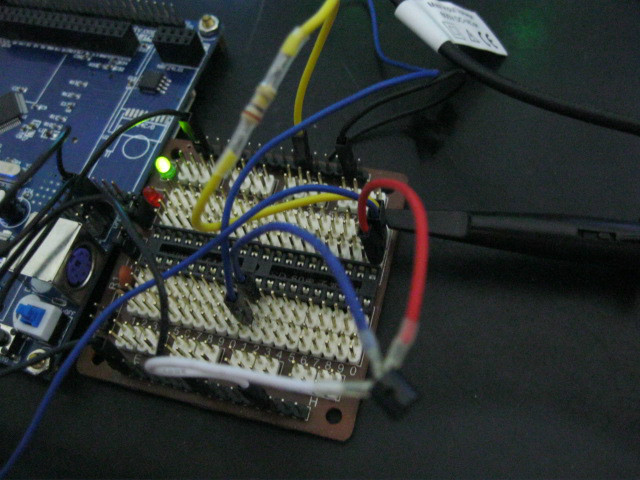

//---------------------STM32 3.3V轉5V輸出電路------------------------

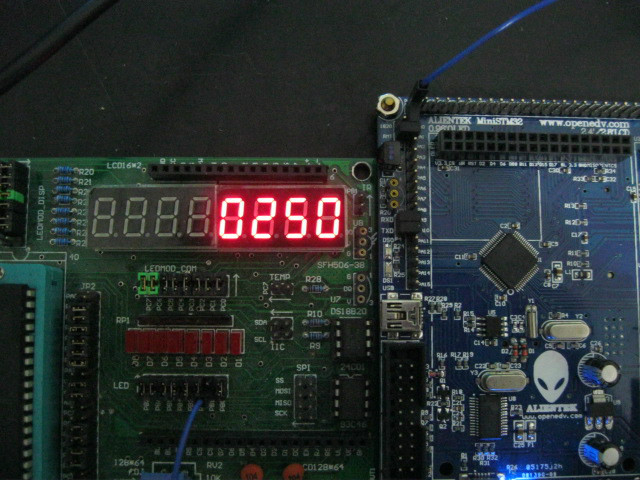

//---------------------AVR代碼-----------------------
//芯片用ATMEG16
#include <iom16.h>
#define uchar unsigned char
#define uint unsigned int
__flash uchar seg[17]={0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07, //數碼管碼表
0x7f,0x6f,0x77,0x7c,0x39,0x5e,0x79,0x71,0x80};
__flash uchar tab[8]={0xfe,0xfd,0xfb,0xf7,0xef,0xdf,0xbf,0x7f}; //數碼管位選
uint i; //定時器1秒到時變量
uint tt; //計數頻率
uchar start=1; //定時器啟動變量
void port_init()
{
PORTA=0xff;
DDRA=0xff;
PORTB=0xff;
DDRB=0xff;
PORTC=0xff;
DDRC=0xff;
PORTD=0xff;
DDRD=0xff;
}
void delay(uint k)
{
while(k--);
}
void time0_init() //定時器0初始化
{
TCCR0=0x00; //關閉定時器
TIMSK|=0x01; //定時器0溢出中斷
TCNT0=0x83; //定時1ms
SREG=0x80; //關閉總中斷
}
#pragma vector = 0x24 //定時器0中斷
__interrupt void tim0_ovr()
{
i++;
TCNT0=0x83;
if(i==1000) //1秒時間到
{
i=0;
TCCR1B=0x00; //停止計數
TCCR0=0x00; //停止定時
tt=TCNT1;//頻率值給變量
TCNT1H=0x00;
TCNT1L=0x00; //計數清零
TCNT0=0x83; //定時器初值
start=1; //開啟定時器啟動變量
}
}
void time1_init()
{
TCCR1A=0x00;
TCCR1B=0x00; //停止計數
TCNT1H=0x00;
TCNT1L=0x00;
}
void show(uint dat) //頻率值顯示
{
PORTA=seg[dat/1000];
PORTC=tab[3];
delay(100);
PORTA=seg[dat%1000/100];
PORTC=tab[2];
delay(100);
PORTA=seg[dat%100/10];
PORTC=tab[1];
delay(100);
PORTA=seg[dat%10];
PORTC=tab[0];
delay(100);
}
void main()
{
port_init();
time0_init();
time1_init();
while(1)
{
if(start==1)
{
TCCR0=0x03; //定時器開啟
TCCR1B=0x06; //計數器開啟
start=0; //保證定時1秒是否開啟變量
}
show(tt);
}
}

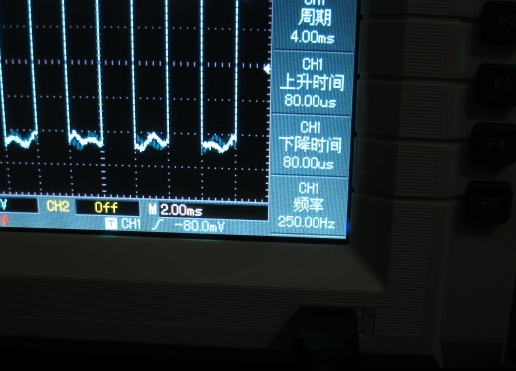

//-------------------STM32代碼-------------------------
#include <stm32f10x_lib.h>
#include "sys.h"
#include "delay.h"
#include "usart.h"
#include "led.h"
int main()
{
Stm32_Clock_Init(9);
delay_init(72);
led_init();
while(1)
{
LED=1;
delay_ms(2);
LED=0;
delay_ms(2);
}
}
//--------------------------led.c--------------
#include <stm32f10x_lib.h>
#include "led.h"
void led_init(void)
{
RCC->APB2ENR|=1<<4; //使能PC時鐘
GPIOC->CRH&=0xffffff0f;
GPIOC->CRH|=0x00000030;
GPIOC->ODR|=1<<9;
}
//----------------------led.h-------------------------
#ifndef led_h
#define led_h
#include "sys.h"
#define LED PCout(9)
void led_init(void);
#endif
