#define MX_PIC

//Defines for microcontroller
#define P16F690
#define MX_EE
#define MX_EE_SIZE 256
#define MX_SPI
#define MX_SPI_BCB
#define MX_SPI_SDI 4
#define MX_SPI_SDO 7
#define MX_SPI_SCK 6
#define MX_UART
#define MX_UART_B
#define MX_UART_TX 7
#define MX_UART_RX 5
#define MX_I2C
#define MX_MI2C
#define MX_I2C_B
#define MX_I2C_SDA 4
#define MX_I2C_SCL 6
#define MX_PWM
#define MX_PWM_CNT 1
#define MX_PWM_TRIS1 trisc
#define MX_PWM_1 5

//Functions
#define MX_CLK_SPEED 19660800
#ifdef _BOOSTC
#include <system.h>
#endif
#ifdef HI_TECH_C
#include <pic.h>
#endif

//Configuration data

//Internal functions
#include "F:\Program Files\Matrix Multimedia\Flowcode V4\FCD\internals.h"

//Macro function declarations

//Variable declarations
char FCV_COUNT;



//Macro implementations

void main()
{

 //Initialisation
 ansel = 0;
anselh = 0;

 //Interrupt initialisation code
 option_reg = 0xC0;

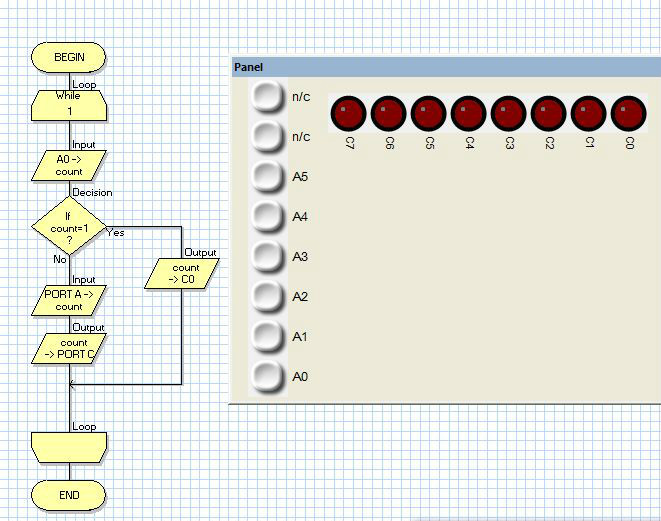

 //Loop
 //Loop: While 1
 while (1)
 {
  //Input
  //Input: A0 -> count
  trisa = trisa | 0x01;
  FCV_COUNT = ((porta & 0x01) == 0x01);

  //Decision
  //Decision: count=1?
  if (FCV_COUNT==1)
  {
   //Output
   //Output: count -> C0
   trisc = trisc & 0xfe;
   if (FCV_COUNT)
    portc = (portc & 0xfe) | 0x01;
   else
    portc = portc & 0xfe;

  } else {
   //Input
   //Input: PORT A -> count
   trisa = trisa | 0xff;
   FCV_COUNT = porta;

   //Output
   //Output: count -> PORT C
   trisc = 0x00;
   portc = FCV_COUNT;

  }

 }

 mainendloop: goto mainendloop;
}

void MX_INTERRUPT_MACRO(void)
{
}
