基于stm32的熱敏打印機程序版，目前打印邏輯有些問題

ID:351680 · 發表于 2018-6-14 10:58

這個程序我是用stm32cubemx生成，所有初始化都是按照ST官方樣式編寫

單片機源程序如下:

/* Includes ------------------------------------------------------------------*/
#include "global.h"
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/* Private variables ---------------------------------------------------------*/
union{
uint8_t ACC;
struct{
uint8_t h0 :1;
uint8_t h1 :1;
uint8_t h2 :1;
uint8_t h3 :1;
uint8_t h4 :1;
uint8_t h5 :1;
uint8_t h6 :1;
uint8_t h7 :1;
}bits;
}Bytes;
uint8_t val=0;
void read(unsigned char hz)
{
Bytes.ACC=hz;
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h7);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h6);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h5);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h4);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h3);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h2);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h1);
CLK_PutVal(GPIO_PIN_RESET);
CLK_PutVal(GPIO_PIN_SET);
DI_PutVal((GPIO_PinState)Bytes.bits.h0);
}
void printf24(u8 *p)
{
uint8_t i1=0;
uint8_t *pp;
uint8_t k,k2;
unsigned int k1=0;
char printhzflag;
unsigned char what,what1;
char hh;
pp=p;
while(1)
{
p++;
if(*p==0x0a) p++;
pp=p;
//缺紙/* ++@zengziwen modiffy@++ */
while((PHK_GetVal()==0))
{
return;
}
for(k=0;k<24;k++)
{
//OneStep();
__MotorEnable();
OneStep();
__MotorEnable();
//runmotor(4);
p=pp;
//while(*p!=0x0d)
/* ++@zengziwen modiffy@++ */
while(*p=='\r')
{
p+=1;
}
while(*p!='\r')
{
what1=what=*p;
if(what==0x20)
{
what=0;
printhzflag=0;
}
else
{
if(what==0x03)
{
if(*(p-1)==0x0a)
return;
}
//if((what>=0x61)&(what<0x80))
if((what>=0x61)&&(what<=0x7a)) /* a---->z */
{
printhzflag=0;
//what=what-74+9;
what=what-65;
goto print;
}
if(what1>=0x80)/* zh */
{
what=what-41;
printhzflag=1;
goto print;
}
if(what1==0x40)
{
what1=what1+45;
printhzflag=1;
goto print;
}
//if((what1>0x40)&(what1<=0x5a))
if((what1>=0x41)&&(what1<=0x5a)) /* A---->Z */
{
what=what-0x41;
printhzflag=2;
goto print;
}
//if((what1>=0x21)&(what1<=0x3f))
if((what1>=0x21)&&(what1<=0x3f))
{
printhzflag=0;
what=what-0x20;
goto print;
}
}
print:
switch(printhzflag)
{
case 0:
for(i1=0;i1<2;i1++)
{
read(hzk16[what*24+k][i1]);
spe++;
}
break;
case 1:
what=what1-109;
for(i1=0;i1<3;i1++)
{
read(hzk24[what*24+k][i1]);
spe++;
}
break;
case 2:
for(i1=0;i1<2;i1++)
{
//hh = what;
//hh = A_Z[what*24+k][i1];
read(A_Z[what*24+k][i1]);
spe++;
}
break;
}
p++;
}
for(i1=0;i1<48-spe;i1++)
{
read(0);
}
spe=0;
nLAT_PutVal(GPIO_PIN_RESET);
/* ++@zengziwen modiffy@++ */
delay_us(10);
nLAT_PutVal(GPIO_PIN_SET);
if(HEAT_GetVal(&hadc1)!=0)//太熱
{
do{
STB1_PutVal(GPIO_PIN_RESET);
STB2_PutVal(GPIO_PIN_RESET);
STB3_PutVal(GPIO_PIN_RESET);
STB4_PutVal(GPIO_PIN_RESET);
//STB5_PutVal(GPIO_PIN_RESET);
//STB6_PutVal(GPIO_PIN_RESET);
}while((HEAT_GetVal(&hadc1)==0));//
}
STB1_PutVal(GPIO_PIN_SET);
STB2_PutVal(GPIO_PIN_SET);
STB3_PutVal(GPIO_PIN_SET);
STB4_PutVal(GPIO_PIN_SET);
//STB5_PutVal(GPIO_PIN_SET);
//STB6_PutVal(GPIO_PIN_SET);
k1++;
//OneStep();
//runmotor(4);
__MotorEnable();
OneStep();
__MotorEnable();
//delay_us(400);
//delay_us(800);
delay_us(1090);
k1++;
nLAT_PutVal(GPIO_PIN_RESET);
STB1_PutVal(GPIO_PIN_RESET);
STB2_PutVal(GPIO_PIN_RESET);
STB3_PutVal(GPIO_PIN_RESET);
STB4_PutVal(GPIO_PIN_RESET);
//STB5_PutVal(GPIO_PIN_RESET);
//STB6_PutVal(GPIO_PIN_RESET);
}
for(k2=0;k2<16;k2++)
{
//OneStep();
//runmotor(4);
__MotorEnable();
OneStep();
__MotorEnable();
delay_us(400);
delay_us(800);
k1++;
}
}
}
/* USER CODE BEGIN PV */
/* Private variables ---------------------------------------------------------*/
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
/* Private function prototypes -----------------------------------------------*/
/* USER CODE END PFP */
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
int main(void)
{
/* USER CODE BEGIN 1 */
int i;
/* USER CODE END 1 */
/* MCU Configuration----------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
USART1_Init(&huart1);
ADC1_Init(&hadc1);
__VPENOFF();
ThermalHeadInit();
nLAT_PutVal(0);
STB1_PutVal(0);//
STB2_PutVal(0);
/* USER CODE BEGIN 2 */
for(i=0;i<48;i++)
read(0);
print_flag = 0;
if(PHK_GetVal()==1)
{
paper_flag = 1;
runmotor(200);
}
else
{
paper_flag = 0;
}
/* USER CODE END 2 */
while(1)
{
//val = PHK_GetVal();
printf24(p);
}
/* USER CODE BEGIN WHILE */
while(1)
{
switch(print_flag)
{
case 0:
nLAT_PutVal(0);
STB1_PutVal(0);//
STB2_PutVal(0);
if(PHK_GetVal()==0)
{
if(paper_flag == 0)
{
runmotor(1000);
}
if(PHK_GetVal()==1)
{
paper_flag = 1;
}
else
{
paper_flag = 0;
}
}
else
{
paper_flag = 0;
}
break;
case 1://出紙間隙
print_flag = 0;
break;
case 2://打印機狀態
print_flag = 0;
if(PHK_GetVal()==1)
{
//flag = UART_SendChar(0xa1);//有紙
}
else
{
//flag = UART_SendChar(0xa0);
}
break;
case 3://版本號
#if 0
print_flag = 0;
flag = UART_SendChar(2);delay(1000);
flag = UART_SendChar('V');delay(1000);
flag = UART_SendChar('E');delay(1000);
flag = UART_SendChar('R');delay(1000);
flag = UART_SendChar('2');delay(1000);
flag = UART_SendChar('.');delay(1000);
flag = UART_SendChar('0');delay(1000);
flag = UART_SendChar('1');delay(1000);
flag = UART_SendChar(0X0D);delay(1000);
flag = UART_SendChar(0X0A);delay(1000);
flag = UART_SendChar(3);delay(1000);
#endif
break;
case 4://正常打印
print_flag = 0;
printf24(huart1.RxBuff);
if(PHK_GetVal()==1)//有紙
{
for(i=0;i<line_out*17;i++)
runmotor(2);
}
memset(huart1.RxBuff, 0, 2048);
print_flag = 0;
break;
}
}
/* USER CODE END 3 */
}
/** System Clock Configuration
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct;
RCC_ClkInitTypeDef RCC_ClkInitStruct;
RCC_PeriphCLKInitTypeDef PeriphClkInit;
/**Initializes the CPU, AHB and APB busses clocks
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
_Error_Handler(__FILE__, __LINE__);
}
/**Initializes the CPU, AHB and APB busses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
{
_Error_Handler(__FILE__, __LINE__);
}
PeriphClkInit.PeriphClockSelection = RCC_PERIPHCLK_ADC;
PeriphClkInit.AdcClockSelection = RCC_ADCPCLK2_DIV6;
if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInit) != HAL_OK)
{
_Error_Handler(__FILE__, __LINE__);
}
/**Configure the Systick interrupt time
*/
HAL_SYSTICK_Config(HAL_RCC_GetHCLKFreq()/1000);
/**Configure the Systick
……………………
…………限于本文篇幅余下代碼請從51黑下載附件…………

復制代碼

所有資料51hei提供下載:

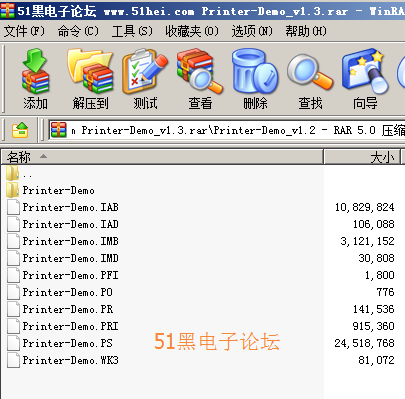

Printer-Demo_v1.3.rar (11.76 MB, 下載次數: 201)

ID:386408 · 發表于 2018-8-15 14:37

請問樓主，如何控制熱敏打印頭加熱

ID:161033 · 發表于 2018-10-14 22:17

不下也要點贊。

ID:345283 · 發表于 2018-10-18 22:16

能打印內容出來嗎？

ID:345283 · 發表于 2018-10-18 22:20

打印頭是多少點的，最快打印速度能達到多少mm/s，有外部字庫嗎？

ID:478116 · 發表于 2019-2-19 15:08

要具體看看．打印頭驅動，字符轉圖片．好多內容．

ID:170774 · 發表于 2019-5-13 11:46

兄弟用什么機芯的?

ID:351680 · 發表于 2019-6-9 21:44

langge 發表于 2019-5-13 11:46
兄弟用什么機芯的?

用的是精芯科技的，字庫方式打印

ID:351680 · 發表于 2019-6-9 21:45

shark313 發表于 2018-10-18 22:20
打印頭是多少點的，最快打印速度能達到多少mm/s，有外部字庫嗎？

24點陣，速度我忘了，字庫得自己做，不過程序里有

ID:461897 · 發表于 2019-9-19 09:10

下載了，為什么打不開？解壓報告沒有發現檔案文件？

ID:461897 · 發表于 2019-9-23 15:14

鐵杵鴕鳥發表于 2019-9-19 09:10
下載了，為什么打不開？解壓報告沒有發現檔案文件？

用好壓就解決了。

ID:461897 · 發表于 2019-9-24 15:36

鐵杵鴕鳥發表于 2019-9-23 15:14
用好壓就解決了。

原來用winrar就報錯！

ID:635290 · 發表于 2019-11-7 16:28

圖片怎么打印？

ID:448382 · 發表于 2020-1-28 01:36

你好，麻煩問一下有沒有機芯的手冊呢？

ID:230666 · 發表于 2020-2-4 11:13

不下也要點贊。

ID:753075 · 發表于 2020-5-16 09:21

樓主打印機調通了嗎？

ID:726918 · 發表于 2020-7-16 15:27

感謝分享，下載下來學習一下

ID:754694 · 發表于 2020-8-31 18:00

剛好手頭有報廢的poss機，謝謝樓主分享學習。

ID:406609 · 發表于 2021-2-19 10:01

最近在調熱敏打印參考一下

ID:8464 · 發表于 2021-3-25 21:36

標記，以后研究。

ID:82944 · 發表于 2022-9-17 14:01

沒接觸過打印機,但也要學習,感覺熱心人士
