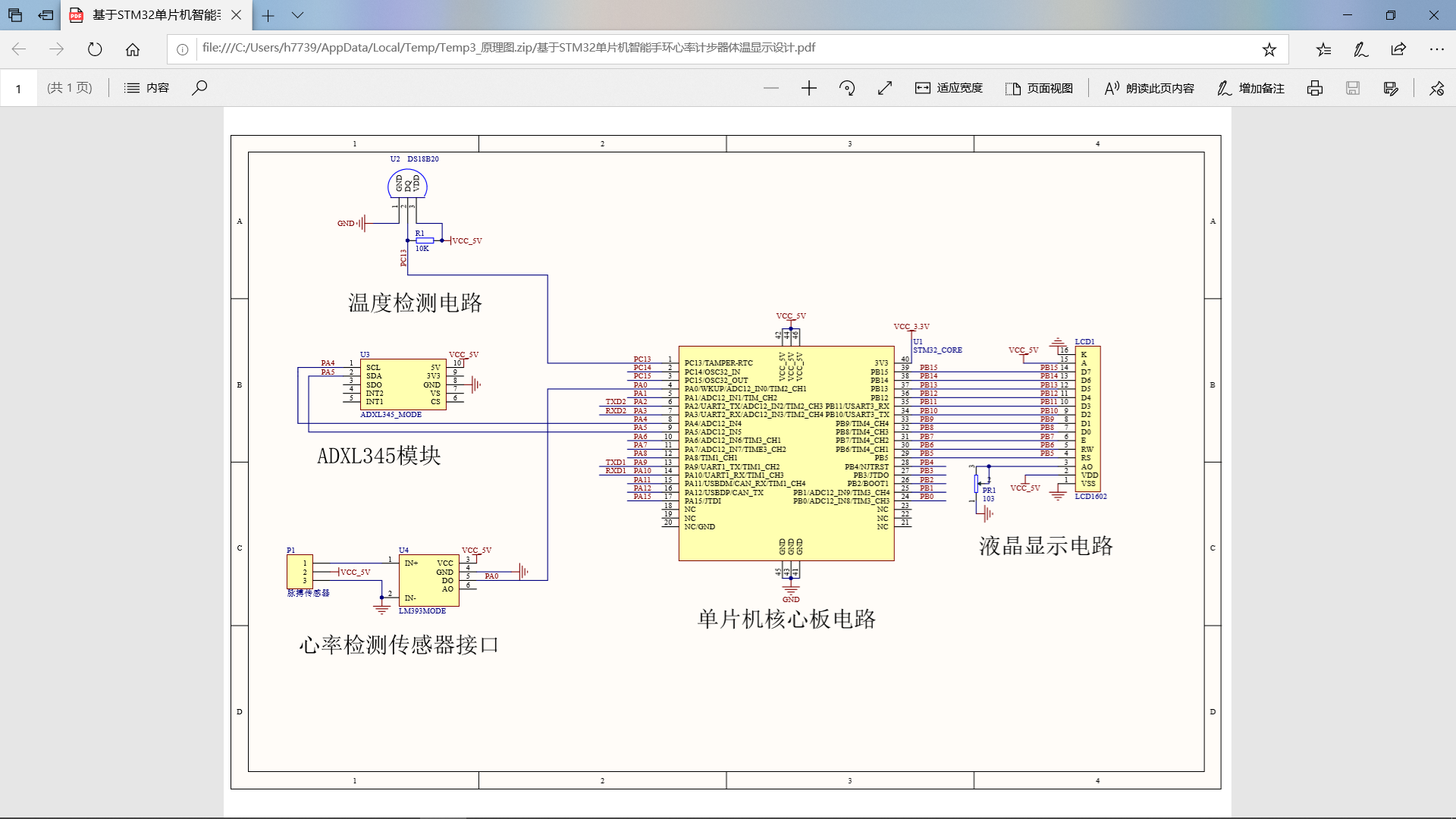

基于STM32的智能運動手環原理圖：
單片機源程序如下:
- #include "led.h"
- #include "delay.h"
- #include "sys.h"
- #include "usart.h"
- #include <stdio.h>
- #include "timer.h"
- #include "key.h"
- #include "exti.h"
- #include "adxl345.h"
- #include "lcd1602.h"
- #include "ds18b20.h"
- unsigned char ReadAdxl345; //定時讀取adxl345數據
- unsigned char ErrorNum=0; //記錄錯誤次數
- unsigned char CheckNum=0; //檢測次數
-
- char dis0[16];//液晶數組顯示暫存
- char dis1[35];
- unsigned int xlTab[5];//心率數組
- unsigned char count=0; //心率濾波計數
- unsigned int xinLater=0;// 心率延時處理
- unsigned int xinLv =0; //心率值
- unsigned int BuShu=0;//步數
- unsigned int Normal_num=0; //正常次數
- unsigned int Error_num=0; //傾斜次數
- unsigned int disBuShu = 0; //顯示步數
- float disJuLi = 0;//顯示距離
- float temperature; //溫度
- unsigned char readTemp = 0; //讀取溫度標志
- int main(void)
- {
- delay_init(); //延時函數初始化
- uart_init(9600); //串口初始化為9600
- TIM3_Int_Init(49,7199);//50ms
- EXTIX_Init(); // 初始化外部中斷
- LED_Init(); //初始化與LED連接的硬件接口
- KEY_Init(); //初始化按鍵
- Lcd_GPIO_init(); //初始化lcd引腳
- Lcd_Init(); //初始化lcd屏幕
- delay_ms(200);
-
- Init_ADXL345();
- if(Single_Read_ADXL345(0X00)==0xe5)
- {
- delay_ms(5);
- }
- else
- {
- delay_ms(3);
- }
-
- while(1)
- {
- if(ReadAdxl345== 1) //定時讀取adxl345數據
- {
- ReadAdxl345= 0;
- ReadData_x(); //三軸檢測函數
- CheckNum++;
- if((temp_Y>450)||(temp_Y<-450)) //查看正常次數
- {
- Normal_num++; //正常次數++
- }
- else
- {
- Error_num++;//傾斜次數
- }
- if((Error_num!=0)&&(Normal_num!=0))//檢測到步數
- {
- BuShu++; //步數脈沖量++
- Error_num=0; //清除一個周期檢測
- Normal_num=0;
- }
- }
-
- if(disFlag==1) //顯示標志
- {
- disFlag = 0;
- readTemp++; //定時計數
- if(readTemp >= 8)//約800ms處理一次數據 溫度
- {
- readTemp =0;//重新計數
- temperature=(float)DS18B20_Get_Temp()/10; //縮小10倍為實際值
- }
-
- disBuShu = BuShu/2; //顯示步數
- disJuLi = disBuShu*0.45;//顯示距離
-
- sprintf(dis0,"X:%03d/min %4.1f C",xinLv,temperature);//打印
- Lcd_Puts(0,0,(unsigned char *)dis0); //顯示
- Lcd_1Put(14,0,0xdf);//顯示符號
- sprintf(dis1,"BS:%03d JL:%4.1fm ",disBuShu,disJuLi);//打印
- Lcd_Puts(0,1,(unsigned char *)dis1); //顯示
-
- }
- }
- }
