單片機+ADC0808+LCD12864顯示電池圖標 Proteus仿真程序

[復制鏈接]
跳轉到指定樓層
樓主
ID:978297 發表于 2021-12-23 19:42 | 只看該作者 |只看大圖 回帖獎勵 |倒序?yàn)g覽 |閱讀模式
通過調整可調變阻器，LCD上顯示相應電壓值。
仿真原理圖如下（proteus仿真工程文件可到本帖附件中下載）


單片機源程序如下:
  1. #include <reg51.h>
  2. #include <stdio.h>
  3. #include <intrins.h>
  4. #define uchar unsigned char
  5. #define uint unsigned int
  6. #define DATA P2   //數據端口

  8. sbit start = P3^0;   //
  9. sbit EOC = P3^1;
  10. sbit OE = P3^4;

  12. sbit RS = P3^7;    //指令數據選擇
  13. sbit E = P3^5;    //指令數據控制
  14. sbit RW = P3^6;    //讀寫控制
  15. sbit busy = P2^7;   //忙標志
  16. sbit CS1 = P3^2;   //左屏幕選擇，低電平有效
  17. sbit CS2 = P3^3;   //右屏幕選擇
  18. sbit LED = P0^1;

  20. /////////////////////////////////////// LCD /////////////////////////////////////
  21. const uchar code SZ[] = {
  22. 0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,/*"0",0*/
  23. 0x00,0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,/*"1",1*/
  24. 0x00,0x70,0x08,0x08,0x08,0x08,0xF0,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,/*"2",2*/
  25. 0x00,0x30,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x18,0x20,0x21,0x21,0x22,0x1C,0x00,/*"3",3*/
  26. 0x00,0x00,0x80,0x40,0x30,0xF8,0x00,0x00,0x00,0x06,0x05,0x24,0x24,0x3F,0x24,0x24,/*"4",4*/
  27. 0x00,0xF8,0x88,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x20,0x20,0x20,0x11,0x0E,0x00,/*"5",5*/
  28. 0x00,0xE0,0x10,0x88,0x88,0x90,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x20,0x1F,0x00,/*"6",6*/
  29. 0x00,0x18,0x08,0x08,0x88,0x68,0x18,0x00,0x00,0x00,0x00,0x3E,0x01,0x00,0x00,0x00,/*"7",7*/
  30. 0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,/*"8",8*/
  31. 0x00,0xF0,0x08,0x08,0x08,0x10,0xE0,0x00,0x00,0x01,0x12,0x22,0x22,0x11,0x0F,0x00,/*"9",9*/
  32. 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,/*".",10*/
  33. };

  35. const uchar code Hzk[] = {
  36. 0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0x08,0x08,0xFF,0x08,0x09,0x0A,0xC8,0x08,0x00,
  37. 0x80,0x60,0x1F,0x00,0x10,0x20,0x1F,0x80,0x40,0x21,0x16,0x18,0x26,0x41,0xF8,0x00,/*"成",0*/
  38. 0x20,0x24,0x24,0xA4,0x7F,0x24,0x34,0x28,0x26,0x20,0xFE,0x02,0x22,0xDA,0x06,0x00,
  39. 0x04,0x02,0xFF,0x49,0x49,0x49,0x49,0xFF,0x00,0x00,0xFF,0x08,0x10,0x08,0x07,0x00,/*"都",1*/

  41. 0x00,0x80,0x60,0xF8,0x07,0x00,0x04,0x24,0x24,0x25,0x26,0x24,0x24,0x24,0x04,0x00,
  42. 0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0xF9,0x49,0x49,0x49,0x49,0x49,0xF9,0x00,0x00,/*"信",2*/

  44. 0x00,0x00,0x00,0xFC,0x54,0x54,0x56,0x55,0x54,0x54,0x54,0xFC,0x00,0x00,0x00,0x00,
  45. 0x40,0x30,0x00,0x03,0x39,0x41,0x41,0x45,0x59,0x41,0x41,0x73,0x00,0x08,0x30,0x00,/*"息",3*/

  47. 0x00,0x04,0x04,0x04,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x04,0x04,0x00,0x00,
  48. 0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00,/*"工",4*/

  50. 0x24,0x24,0xA4,0xFE,0x23,0x22,0x00,0x3E,0x22,0x22,0x22,0x22,0x22,0x3E,0x00,0x00,
  51. 0x08,0x06,0x01,0xFF,0x01,0x06,0x40,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x41,0x00,/*"程",5*/

  53. 0x20,0x20,0x20,0x20,0x20,0x20,0x20,0xFF,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00,
  54. 0x80,0x80,0x40,0x20,0x10,0x0C,0x03,0x00,0x03,0x0C,0x10,0x20,0x40,0x80,0x80,0x00,/*"大",6*/

  56. 0x40,0x30,0x11,0x96,0x90,0x90,0x91,0x96,0x90,0x90,0x98,0x14,0x13,0x50,0x30,0x00,
  57. 0x04,0x04,0x04,0x04,0x04,0x44,0x84,0x7E,0x06,0x05,0x04,0x04,0x04,0x04,0x04,0x00 /*"學",7*/
  58. };

  60. const uchar code pic[]={
  61. 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
  62. 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xFF,0xFF,0xFF,0xFF,0x01,
  63. 0x00,0x00,0xC0,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0x00,0xC0,0xFF,0xFF,0xFF,0xFF,0x01,
  64. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  65. 0x00,0x00,0xC0,0x01,0x80,0x03,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  66. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  67. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0xFC,0xFF,0x01,0xC0,0x07,0xC0,0x01,
  68. 0x00,0xFE,0xFF,0x01,0xC0,0x07,0xC0,0x01,0x00,0xFE,0xFF,0xC1,0xFF,0xFF,0xC7,0x01,
  69. 0x00,0xFE,0xFF,0xE1,0xFF,0xFF,0xCF,0x01,0x00,0xFE,0xFF,0xE1,0xFF,0xFF,0xCF,0x01,
  70. 0x00,0xFE,0xFF,0xE1,0xFF,0xFF,0xCF,0x01,0x00,0xFC,0xFF,0xC1,0xFF,0xFF,0xC7,0x01,
  71. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  72. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  73. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  74. 0x00,0x00,0xC0,0x01,0x80,0x03,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  75. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  76. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  77. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  78. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  79. 0x00,0x00,0xC0,0x01,0x80,0x03,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  80. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  81. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  82. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  83. 0x00,0xF8,0xFF,0x01,0xC0,0x07,0xC0,0x01,0x00,0xFC,0xFF,0x01,0xC0,0x07,0xC0,0x01,
  84. 0x00,0xFC,0xFF,0x01,0xC0,0x07,0xC0,0x01,0x00,0xFC,0xFF,0x01,0xC0,0x07,0xC0,0x01,
  85. 0x00,0xFC,0xFF,0x01,0xC0,0x07,0xC0,0x01,0x00,0xF8,0xFF,0x01,0xC0,0x07,0xC0,0x01,
  86. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  87. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,
  88. 0x00,0x00,0xC0,0x01,0xC0,0x07,0xC0,0x01,0x00,0x00,0xC0,0x01,0x80,0x03,0xC0,0x01,
  89. 0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,0x00,0x00,0xC0,0x01,
  90. 0x00,0x00,0xC0,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0x00,0xC0,0xFF,0xFF,0xFF,0xFF,0x01,
  91. 0x00,0x00,0xC0,0xFF,0xFF,0xFF,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
  92. 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
  93. };
  94. void CheckState()
  95. {
  96.         uchar dat;
  97.         RS = 0;
  98.         RW = 1;
  99.
  100.         do
  101.         {
  102.                 DATA = 0x00;
  103.                 E = 1;
  104.                 _nop_();
  105.                 dat = DATA;
  106.                 E = 0;
  107.                 dat = 0x80&dat;
  108.         }while(!(dat==0x00));
  109.
  110. }

  112. void SendCommand(uchar com)
  113. {
  114.         CheckState();
  115.         RS = 0;
  116.         RW = 0;
  117.         DATA = com;
  118.         E = 1;
  119.         _nop_();
  120.         _nop_();
  121.         E = 0;
  122. }

  124. void SetLine(uchar page)
  125. {
  126.         page = 0xb8|page;
  127.         SendCommand(page);
  128. }

  130. void SetStartLine(uchar startLine)
  131. {
  132.         startLine = 0xc0 | startLine;
  133.         SendCommand(startLine);
  134. }

  136. void SetColumn(uchar column)
  137. {
  138.         column &= 0x3f;
  139.         column |= 0x40;
  140.         SendCommand(column);
  141. }

  143. void SetOnOff(uchar onOff)
  144. {
  145.         onOff |= 0x3e;
  146.         SendCommand(onOff);
  147. }

  149. void WriteByte(uchar dat)
  150. {
  151.         CheckState();
  152.         RS=1;
  153.         RW = 0;
  154.         DATA = dat;
  155.         E = 1;
  156.         _nop_();
  157.         _nop_();
  158.         E = 0;
  159. }

  161. void SelectScreen(uchar screen)
  162. {
  163.         switch(screen)
  164.         {
  165.                 case 0: //全屏
  166.                 CS1 = 1;
  167.                 CS2 = 1;
  168.                 break;
  169.                 case 1: //左屏
  170.                 CS1 = 1;
  171.                 CS2 = 0;
  172.                 break;
  173.                 case 2: //右屏
  174.                 CS1 = 0;
  175.                 CS2 = 1;
  176.                 break;
  177.         }
  178. }
  179. ……………………

  181. …………限于本文篇幅 余下代碼請從51黑下載附件…………
復制代碼

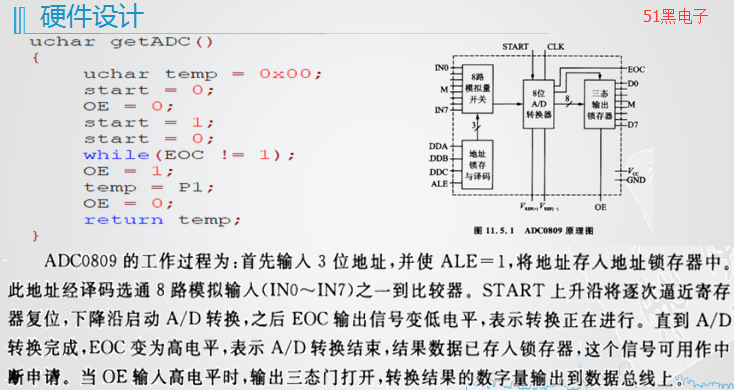

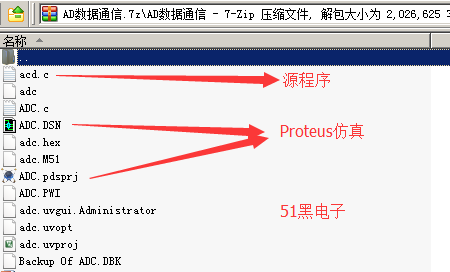

所有資料51hei附件下載:
AD數據通信.7z (1.23 MB, 下載次數: 35)
