在使用STM32G431RBT6實現等精度測量頻率法的時候發現測量出來的誤差很大很大。我是采用的TIM2的CH2輸出一個頻率可調的PWM波，然后用TIM3的CH2作輸入捕獲來測量頻率，我在網上學習了一下關于等精度測量法的知識，然后發現自己用代碼實現的時候總出錯，希望有大佬幫我指出問題！
（PS：這塊板子的系統頻率是80MHz）
下面附上我基于HAL庫的代碼，主函數中的ADD函數是我輸出PWM波可調的函數，ADD中的輸入變量即是最后輸出的頻率值，已經用示波器測過了，誤差不超過1hz。我我發現當我輸入一個實際頻率為1000Hz的時候，測量值顯示為5532.5Hz +-0.5跳變。

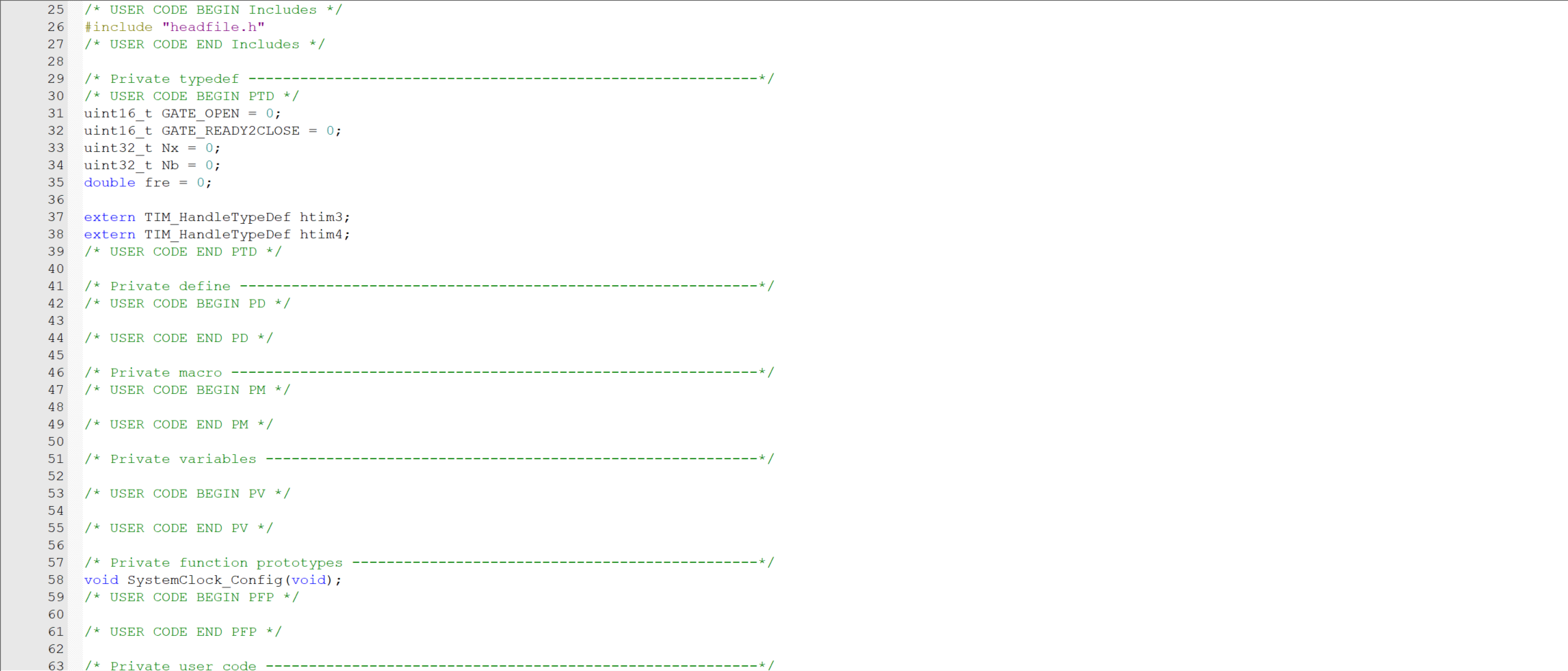

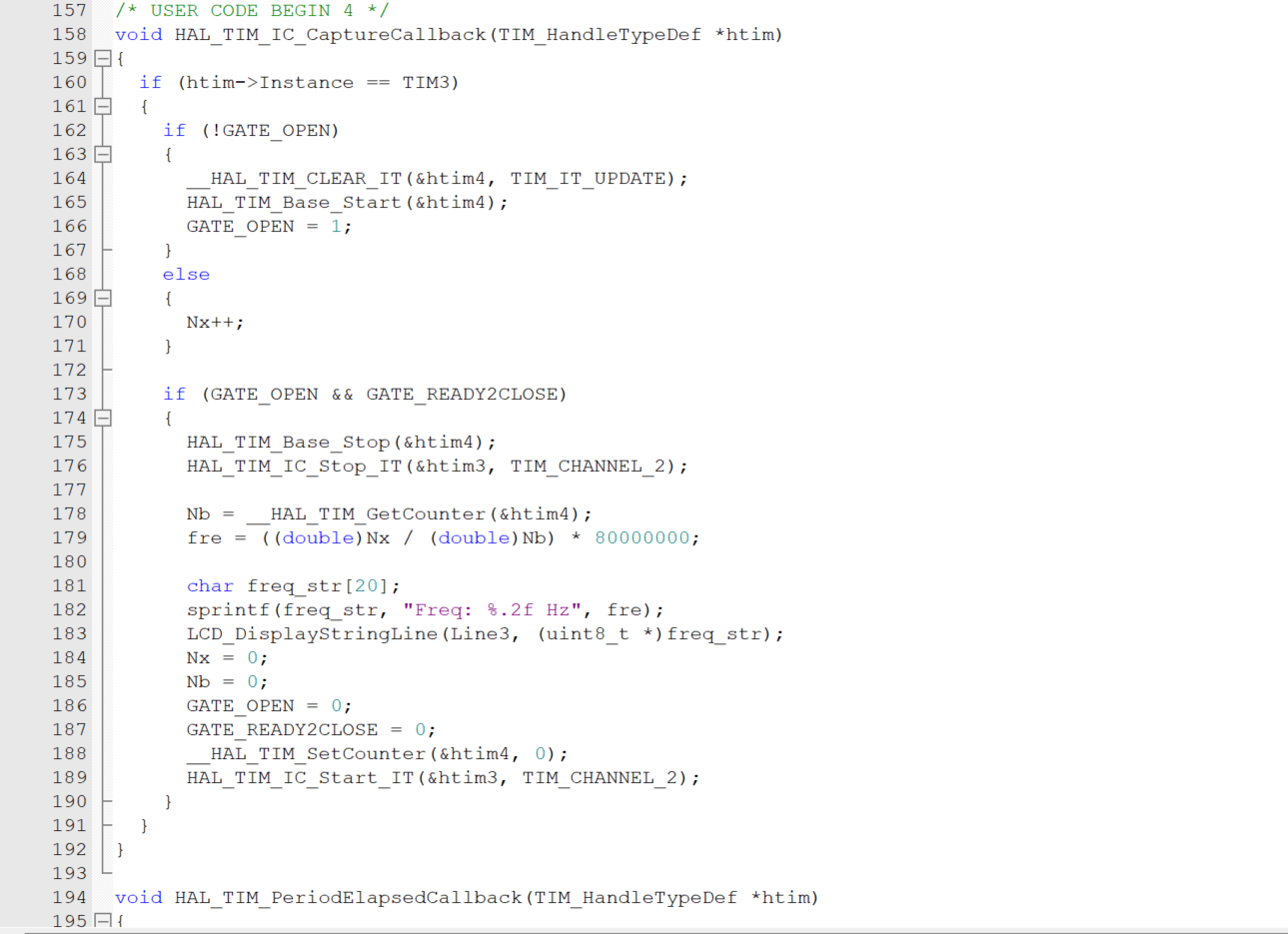

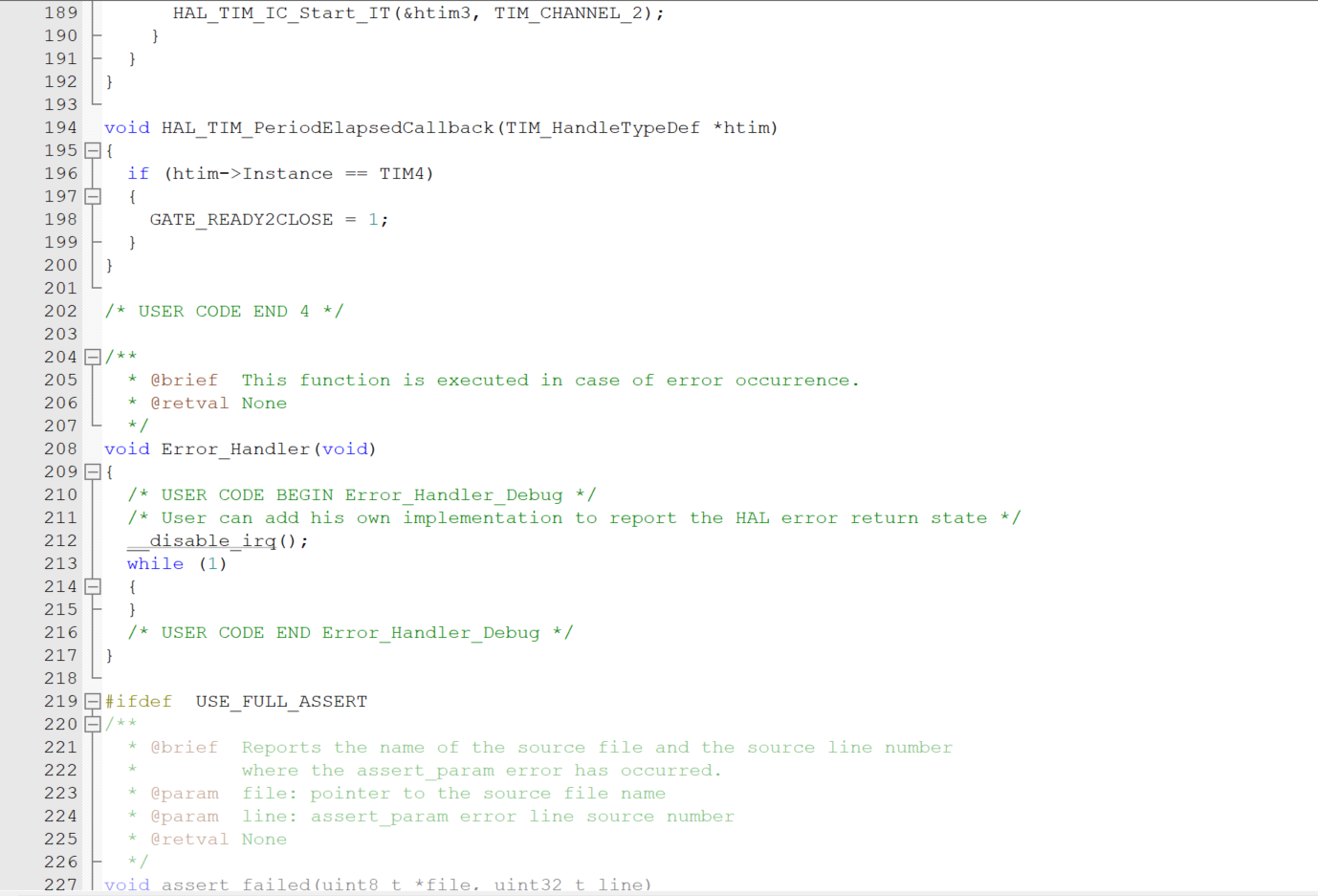

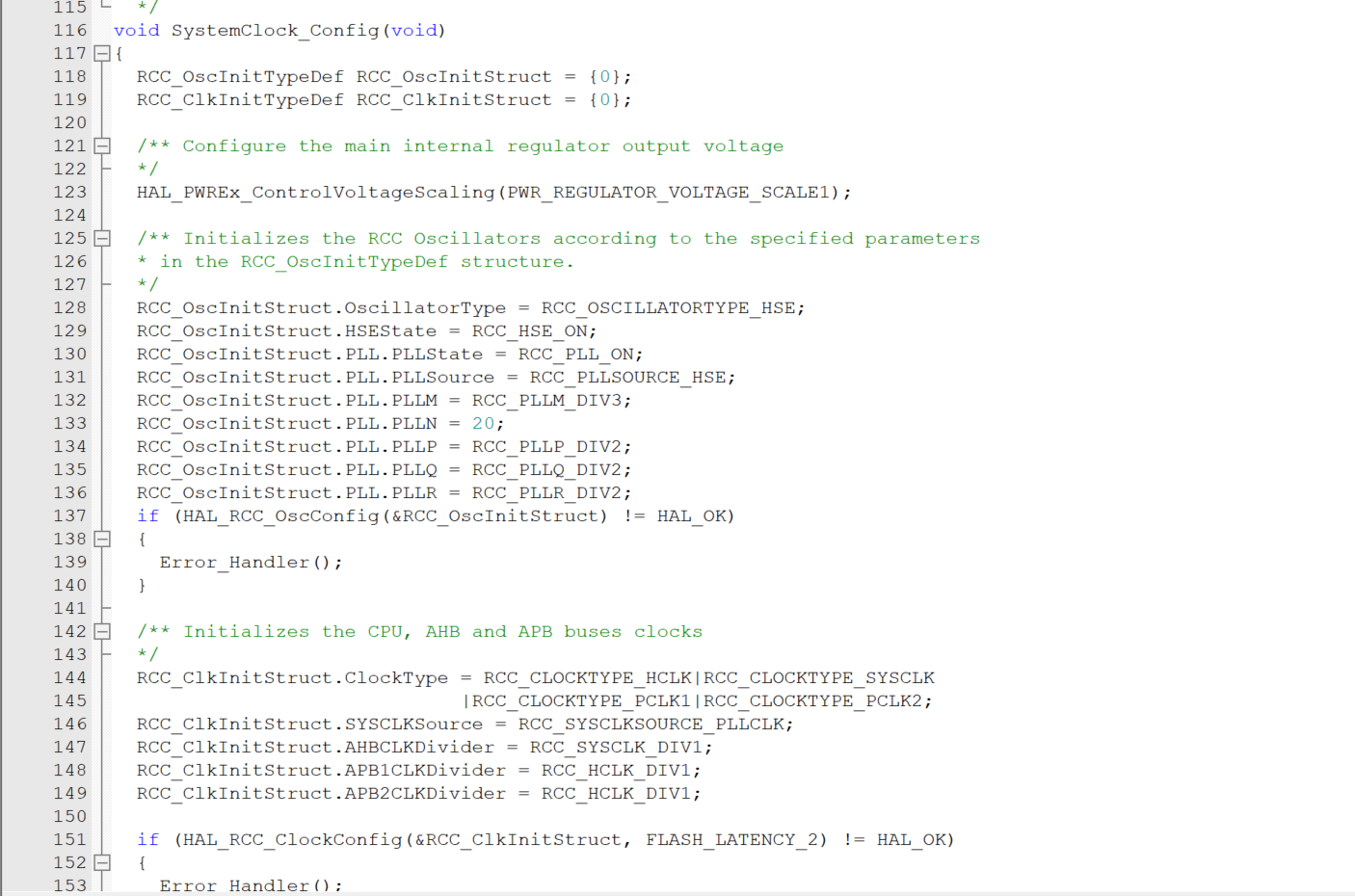

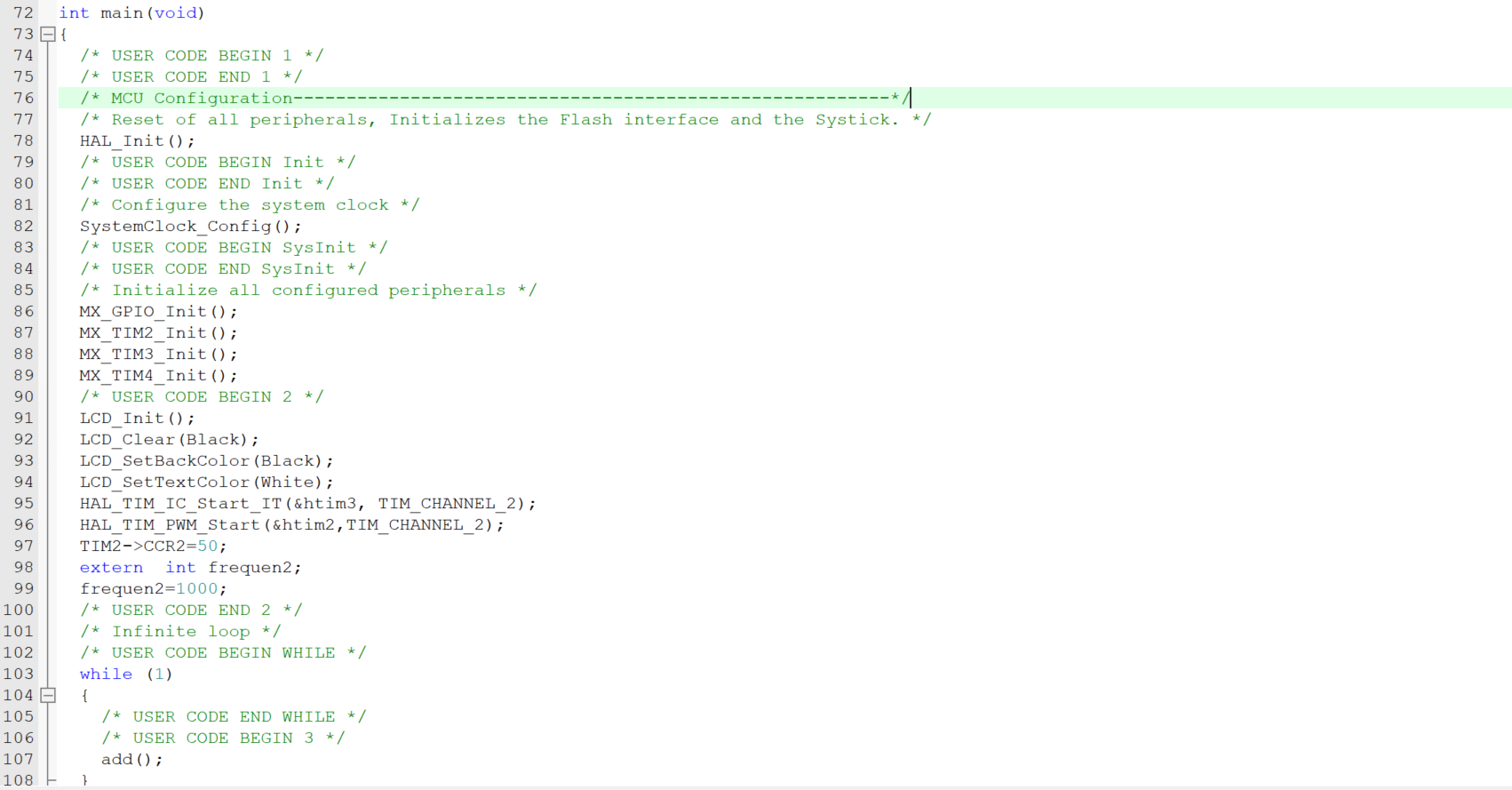

main.c
