支持多種芯片 USB高壓編程器電路圖源代碼

ID:124161 · 發表于 2016-6-7 14:44

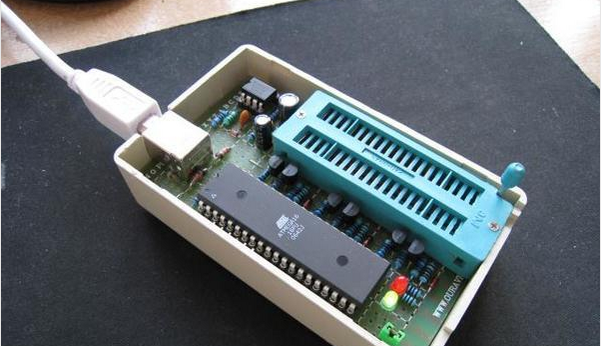

主控芯片Mega16，單ZIF座不用跳線就可以支持多種芯片，用的是zhifeng的POWERPRG早期版本采用的協議。

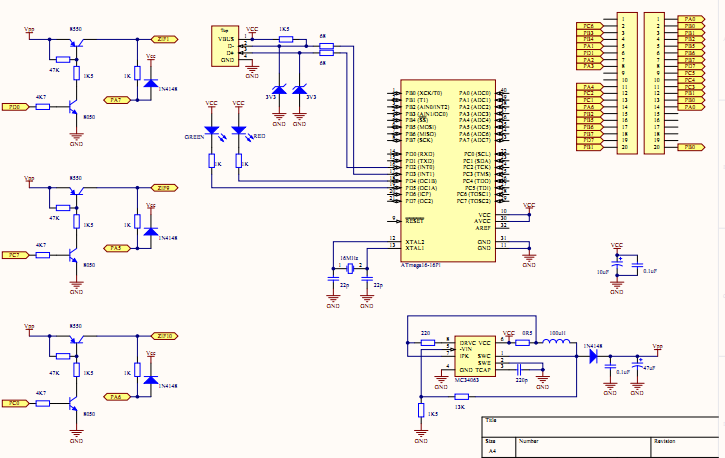

USB高壓編程器電路截圖：

USB高壓編程器版本V0.1說明幾點：

上傳的程序目前支持Mega8、Mega16\32、Mega8535；M48\88\168時序應該和Mega8是一樣的，程序中考慮了擴展熔絲位，但是沒有進行測試。
硬件上還可支持如下芯片，Tiny2313、Tiny13（及引腳定義相同的8DIP封裝的芯片）、Tiny26、AT24C系列。
上位機軟件是附件中的那個POWERPRG，不是zhifeng網上的那個，這個版本沒法禁止SPIEN位。

USB高壓編程器版本V0.1更新：

可以支持芯片如下：Mega8\48\88\168、Mega16\32\8535、Mega8515（待測）、Tiny2313、Tiny26(待測)、S5x（ISP方式，無法實現自動功能）；
增加轉接模式，方便貼片封裝的芯片，20針定義參見http://www.der-hammer.info/hvprog/index_en.htm，已用Mega64進行測試；
待測的原因是手頭沒有相應芯片；
需要將附件中的dat文件覆蓋13樓中提供的原文件，硬件上有細微改動—將ZIF19和ZIF33連到PD7上，將ZIF2連到PC6上；
所有芯片和轉接模式均是頂頭對齊。

#include <avr/io.h>
#include <avr/interrupt.h>
#include <avr/pgmspace.h>
#include <avr/wdt.h>
#include "usbdrv.h"
#include "clock.h"
#include "HVProg.h"
#define USBASP_FUNC_CONNECT 1
#define USBASP_FUNC_DISCONNECT 2
#define USBASP_FUNC_TRANSMIT 3
#define USBASP_FUNC_READFLASH 4
#define USBASP_FUNC_ENABLEPROG 5
#define USBASP_FUNC_WRITEFLASH 6
#define USBASP_FUNC_READEEPROM 7
#define USBASP_FUNC_WRITEEEPROM 8
#define USBASP_FUNC_SETLONGADDRESS 9
#define PROG_STATE_IDLE 0
#define PROG_STATE_WRITEFLASH 1
#define PROG_STATE_READFLASH 2
#define PROG_STATE_READEEPROM 3
#define PROG_STATE_WRITEEEPROM 4
#define PROG_BLOCKFLAG_FIRST 1
#define PROG_BLOCKFLAG_LAST 2
static uchar replyBuffer[8];
static uchar prog_state = PROG_STATE_IDLE;
static uchar prog_address_newmode = 0;
static unsigned long prog_address;
static unsigned int prog_nbytes = 0;
static unsigned int prog_pagesize;
static uchar prog_blockflags;
static uchar prog_pagecounter;
uchar temp_data = 0;
uchar chip_id = 0;
void ledRedOn(){
PORTD &= ~0x10;
}
void ledRedOff(){
PORTD |= 0x10;
}
uchar usbFunctionSetup(uchar data[8]) {
uchar len = 0;
if(data[1] == USBASP_FUNC_CONNECT){
chip_id = data[3];
HWSwitch();
prog_address_newmode = 0;
HVConnect();
ledRedOn();
replyBuffer[0] = 0x05;
replyBuffer[1] = 0x89;
replyBuffer[2] = 0xF0;
replyBuffer[3] = 0x02;
len = 4;
} else if (data[1] == USBASP_FUNC_DISCONNECT) {
HVEndProgramming();
HVDisconnect();
ledRedOff();
} else if (data[1] == USBASP_FUNC_TRANSMIT) {
if(data[2] == 0x00){
replyBuffer[0] = HVReadSignature(0);
replyBuffer[1] = HVReadSignature(1);
replyBuffer[2] = HVReadSignature(2);
replyBuffer[3] = 0x02;
}
else if(data[2] == 0x01 && data[3] == 0x32){
replyBuffer[0] = HVEraseChip();
replyBuffer[1] = 0x89;
replyBuffer[2] = 0xF0;
replyBuffer[3] = 0x02;
}
else if(data[2] == 0x02){
replyBuffer[0] = HVReadOscBit(0);
replyBuffer[1] = HVReadOscBit(1);
replyBuffer[2] = HVReadOscBit(2);
replyBuffer[3] = HVReadOscBit(3);
}
else if(data[2] == 0x03){
replyBuffer[0] = HVReadFuse(0);
replyBuffer[1] = HVReadFuse(1);
if(data[3] == 0x02)replyBuffer[2] = 0xF0;
else replyBuffer[2] = HVReadFuse(2);
replyBuffer[3] = 0x02;
}
else if((data[2] & 0x0F) == 0x04){
HVWriteFuse(data[3],0);
HVWriteFuse(data[4],1);
if((data[2] & 0xF0) == 0x30)HVWriteFuse(data[5],2);
replyBuffer[0] = 0;;
replyBuffer[1] = 0x89;
replyBuffer[2] = 0xF0;
replyBuffer[3] = 0x02;
}
else if(data[2] == 0x05){
replyBuffer[0] = HVReadFuse(3);
replyBuffer[1] = 0x89;
replyBuffer[2] = 0xF0;
replyBuffer[3] = 0x02;
}
else if(data[2] == 0x06){
replyBuffer[0] = HVWriteLockBit(data[3]);
replyBuffer[1] = 0x89;
replyBuffer[2] = 0xF0;
replyBuffer[3] = 0x02;
}
len = 4;
} else if (data[1] == USBASP_FUNC_READFLASH) {
if (!prog_address_newmode)
prog_address = (data[3] << 8) | data[2];
prog_nbytes = (data[7] << 8) | data[6];
prog_state = PROG_STATE_READFLASH;
len = 0xff; /* multiple in */
} else if (data[1] == USBASP_FUNC_READEEPROM) {
if (!prog_address_newmode)
prog_address = (data[3] << 8) | data[2];
prog_nbytes = (data[7] << 8) | data[6];
prog_state = PROG_STATE_READEEPROM;
len = 0xff; /* multiple in */
} else if (data[1] == USBASP_FUNC_ENABLEPROG) {
replyBuffer[0] = HVEnterProgrammingMode();
len = 1;
} else if (data[1] == USBASP_FUNC_WRITEFLASH) {
if (!prog_address_newmode)
prog_address = (data[3] << 8) | data[2];
prog_pagesize = data[4] + 1;
prog_blockflags = data[5] & 0x0F;
prog_pagesize += (((unsigned int)data[5] & 0xF0)<<4);
if (prog_blockflags & PROG_BLOCKFLAG_FIRST) {
prog_pagecounter = prog_pagesize;
}
prog_nbytes = (data[7] << 8) | data[6];
prog_state = PROG_STATE_WRITEFLASH;
len = 0xff; /* multiple out */
HVStartFlashProgramming();
} else if (data[1] == USBASP_FUNC_WRITEEEPROM) {
if (!prog_address_newmode)
prog_address = (data[3] << 8) | data[2];
prog_pagesize = 0;
prog_blockflags = 0;
prog_nbytes = (data[7] << 8) | data[6];
prog_state = PROG_STATE_WRITEEEPROM;
len = 0xff; /* multiple out */
HVStartEEPROMProgramming();
} else if(data[1] == USBASP_FUNC_SETLONGADDRESS) {
/* set new mode of address delivering (ignore address delivered in commands) */
prog_address_newmode = 1;
/* set new address */
prog_address = *((unsigned long*)&data[2]);
}
usbMsgPtr = replyBuffer;
return len;
}
uchar usbFunctionRead(uchar *data, uchar len){
uchar i;
if((prog_state != PROG_STATE_READFLASH) && (prog_state != PROG_STATE_READEEPROM))
return 0xff;
for(i = 0; i < len; i++){
if(prog_state == PROG_STATE_READFLASH){
if(prog_address % 2 == 1)data[i] = temp_data;
else data[i] = HVReadFlash(prog_address);
}else data[i] = HVReadEEPROM(prog_address);
prog_address++;
}
if(len < 8)prog_state = PROG_STATE_IDLE;
return len;
}
uchar usbFunctionWrite(uchar *data, uchar len){
uchar retVal = 0;
uchar i;
if((prog_state != PROG_STATE_WRITEFLASH) && (prog_state != PROG_STATE_WRITEEEPROM))
return 0xff;
for(i = 0;i < len;i++){
if(prog_state == PROG_STATE_WRITEFLASH){
if(prog_pagesize == 0){
return 0xFF;
}else{
if((prog_address % 2) == 0)temp_data = data[i];
else HVWriteFlash(prog_address, data[i], temp_data);
prog_pagecounter--;
if(prog_pagecounter == 0){
HVFlushPage(prog_address);
prog_pagecounter = prog_pagesize;
}
}
}else{
HVWriteEEPROM(prog_address, data[i]);
}
prog_nbytes --;
if(prog_nbytes == 0){
prog_state = PROG_STATE_IDLE;
if((prog_blockflags & PROG_BLOCKFLAG_LAST) && (prog_pagecounter != prog_pagesize))
HVFlushPage(prog_address);
retVal = 1; // Need to return 1 when no more data is to be received
}
prog_address ++;
}
return retVal;
}
int main(void)
{
uchar i, j;
PORTA = 0;
PORTB = 0;
PORTC = 0;
DDRA = 0;
DDRB = 0;
DDRC = 0;
PORTD = 0x10;
DDRD = 0x38; /* all outputs except PD2 = INT0 */
j = 0;
while(--j){ /* USB Reset by device only required on Watchdog Reset */
i = 0;
while(--i); /* delay >10ms for USB reset */
}
DDRD = 0x30; /* all USB and ISP pins inputs */
HWSwitch();
usbInit();
sei();
for(;;){ /* main event loop */
usbPoll();
}
return 0;
}

復制代碼

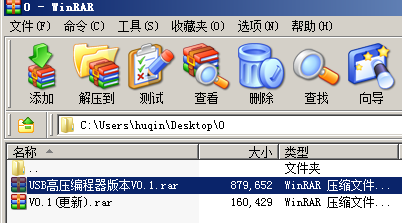

全部資料（壓縮包）下載：

USB高壓編程器版本V0.1.rar (859.04 KB, 下載次數: 24)
